Set Theory

Set Theory: Definitions and the Element Method of Proof

Element Argument: The Basic Method for Proving That Onse Set is a Subset of Another

Let sets $X$ and $Y$ be given. To prove that $X \subseteq Y$,

  1. suppose that $x$ is a particular but arbitrarily chosen element of $X$,
  2. show that $x$ is an element of $Y$.

Set Equality

Set Equality

Given sets $A$ and $B$, $A$ equals $B$, written $A = B$, if, and only if, every element of $A$ is in $B$ and every element in $B$ is in $A$.

Symbolically:

$$A = B \leftrightarrow A \subseteq B \text{ and } B \subseteq A$$

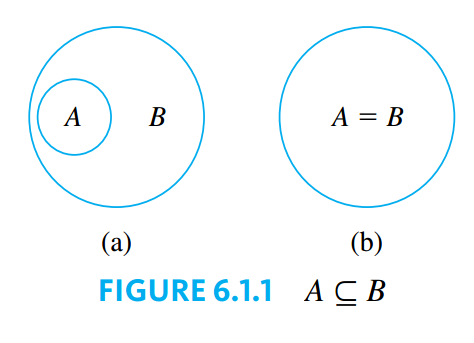

Venn Diagrams

If sets $A$ and $B$ are represented as regions in theh plane, relationships between $A$ and $B$ can be represented using Venn Diagrams, which where introduced by the British mathematician John Venn in 1881.

Venn Diagram

Operations on Sets

Set Operations

Let $A$ and $B$ be subsets of a universal set $U$.

  1. The union of $A$ and $B$, denoted $A \cup B$, is the set of all elements that are in at least one of $A$ or $B$. Symbolically:
$$A \cup B = \{x \in U | x \in A \text{ or } x \in B\}$$
  1. The intersection of $A$ and $B$, denoted $A \cap B$, is the set of all elements that are common to both $A$ and $B$. Symbolically:
$$A \cup B = \{x \in U | x \in A \text{ and } x \in B\}$$
  1. The difference of $B$ minus $A$ (or relative complement of $A$ in $B$), denoted $B - A$, is the set of all elements that are in $B$ and not in $A$. Symbolically:
$$A \cup B = \{x \in U | x \in B \text{ and } x \notin A\}$$
  1. The complement of $A$, denoted $A^C$, is the set of all elements in $U$ that are not in $A$. Symbolically:
$$A \cup B = \{x \in U | x \notin A\}$$

Interval Notation

Given real numbers $a$ and $b$, with $a \leq b$:

$$(a, b) = \{x \in \mathbb{R} | a < x < b\}$$$$[a, b] = \{x \in \mathbb{R} | a \leq x \leq b\}$$$$(a, b] = \{x \in \mathbb{R} | a < x \leq b\}$$$$[a, b) = \{x \in \mathbb{R} | a \leq x < b\}$$

The Empty Set

Empty Set

The empty set (or null set), denoted by $\empty$, is a unique set whith no elements.

Partitions of Sets

Disjoint Sets

Two sets are called disjoint if, and only if, they have no elements in common. Symbolically:

$$A \text{ and } B \text{ are disjoint } \leftrightarrow A \cap B = \empty$$

Mutually Disjoint Sets

Sets $A_1, A_2, A_3, \cdots$ are mutually disjoint (or pairwise disjoint or nonoverlapping) if, and only if, not two sets $A_i$ and $A_j$ with distinct subscripts have any elements in common. More precisely, for all integers $i$ and $j$:

$$A_i \cap A_j = \empty \text{ whenever } i \neq j$$

Partition of a Set

A finite or infinite collection of nonempty sets ${A_1, A_2, A_3, \cdots}$ is a partition of a set $A$ if, and only if:

  1. $A$ is the union of all the $A_i$;
  2. the sets $A_1, A_2, A_3, \cdots$ are mutually disjoint.

Power Sets

Power Sets

Given a set $A$, the power set of $A$, denoted by $\mathcal{P}(A)$ is the set of all subsets of $A$.

Properties of Sets

Some Subset Relations

  1. Inclusion of Intersection: For all sets $A$ and $B$,
$$A \cap B \subseteq A \text{ and } A \cap B \subseteq B$$
  1. Inclusion in Union: For all sets $A$ and $B$,
$$A \subseteq A \cup B \text{ and } B \subseteq A \cup B$$
  1. Transitive Property of Subsets: For all sets $A$, $B$ and $C$,
$$\text{if } A \subseteq B \text{ and } B \subseteq C, \text{ then } A \subseteq C$$

In most proofs of set properties, the secret of getting from the assumption that $x$ is in $X$ to the conclusion that $x$ is in $Y$ is to think of the definitions of basic set operations in terms of how they act on elements.

Procedural Versions of Set Definitions

Let $X$ nad $Y$ be subsets of a universal set $U$, and suppose $x$ and $y$ are elements of $U$.

  1. $x \in X \cup Y \leftrightarrow x \in X \text{ or } x \in Y$

  2. $x \in X \cap Y \leftrightarrow x \in X \text{ and } x \in Y$

  3. $x \in X - Y \leftrightarrow x \in X \text{ and } x \notin Y$

  4. $x \in X^{C} \leftrightarrow x \notin X$

  5. $(x, y) \in X \times Y \leftrightarrow x \in X \text{ and } y \in Y$

Proving a Subset Relation

Consider trying to prove: “For all sets $A$ and $B$, $A \cap B \subseteq A$”.

Starting Point: Suppose $A$ and $B$ are any (particular but arbitrarily chosen) sets.

To Show: $A \cap B \subseteq A$. That is, you must show:

$$ \forall x, x \in A \cap B \rightarrow x \in A $$

Set Identitites

Set Identitity

An identitity is and equation that is universally true for all elements in some set.

Set Identitites

Let all sets referred to below be subsets of a universal set $U$:

  1. Commutative Laws: For all sets $A$ and $B$:

$A \cup B = B \cup A$ and $A \cap B = B \cap B$

  1. Associative Laws: For all sets $A$, $B$ and $C$:
$$(A \cup B) \cup C = A \cup (B \cup C)$$$$(A \cap B) \cap C = A \cap (B \cap C)$$
  1. Distributive Laws: For all sets $A$, $B$ and $C$:
$$A \cup (B \cap C) = (A \cup B) \cap (A \cup C)$$$$A \cap (B \cup C) = (A \cap B) \cup (A \cap C)$$
  1. Identity Laws: For every set $A$:

$A \cup \emptyset = A$ and $A \cap U = A$

  1. Complement Laws: For every set $A$:

$A \cup A^{C} = U$ and $A \cap A^{C} = \emptyset$

  1. Double Complement Laws: For every set $A$:
$$(A^{C})^{C} = A$$
  1. Idempotent Laws: For every set $A$:

$A \cup A = A$ and $A \cap A = A$

  1. Universal Bound Laws: For every set $A$:

$A \cup U = U$ and $A \cap \emptyset = \emptyset$

  1. De Morgan’s Laws: For all sets $A$ and $B$:
$$(A \cap B)^{C} = A^{C} \cup B^{C}$$$$(A \cup B)^{C} = A^{C} \cap B^{C}$$
  1. Absorption Laws: For all sets $A$ and $B$:
$$A \cup (A \cap B) = A$$$$A \cap (A \cup B) = A$$
  1. Complements of $U$ and $\emptyset$:
$$U^{C} = \emptyset$$$$\emptyset^{C} = U$$
  1. Set Difference Laws: For all sets $A$ and $B$:
$$A - B = A \cap B^{C}$$

Basic Method for Proving that Sets are Equal

Let sets $X$ and $Y$ be given. To prove that $X = Y$:

  1. Prove that $X \subseteq Y$
  2. Prove that $Y \subseteq X$

Backward Chaining

Backward chaining is a type of reasoning that can be used to derive proofs. What is to be shown is viewed as a goal to be reached starting from a certain initial position, starting point.

The analysis of this goal leads to the realization that if a certain job is accomplished, denoted by $SG_1$, then the goal will be reached. Then, further analysis of $SG_1$ shows that when yet another job, denoted by $SG_2$, is completed, then $SG_1$ will be reached. Continuining this way, a chain of argument leading backward from the goal is constructed.

Backward Chaining

At a certain point, backward chaining might become difficult, but analysis of the current subgoal $SG_i$ suggests that it might be reachable by a direct line of argument, that is by applying forward chaining from the starting point.

Foward Chaining

Theorems on the Properties of Sets

A Set with No Elements Is a Subset of Every Set

If $E$ is a set with not elements and $A$ is any set, then $E \subseteq A$

Proof (by contradiction): Suppose not, suppose there exists a set $E$ with not elements and a set $A$, such that $E \subseteq A$.

Then, by definition of subset, there would be an element of $E$ that is not an element of $A$. But there can be no such element since $E$ has no elements. Thus this line of reasoning resuls in a contradiction and the supposition must be false.

Uniqueness of the Empty Set

There is only one set with no elements

Proof: Suppose $E_1$ and $E_2$ are both sets with no elements. By the previous Theorem $E_1 \subseteq E_2$ since $E_1$ has no elements. Also $E_2 \subseteq E_1$, since $E_2$ has no elements. Thus $E_1 = E_2$ by definition of set equality.

Element Method for Proving a Set Equals the Empty Set

To prove that a set $X$ is equal to the empty set $\emptyset$, prove that $X$ has no elements. To do this, suppose $X$ has an element and derive a contradiction.

Disproofs and Algebraic Proofs

To show that a universal statement is false, it suffices to find one example, called a counterexample for which it is false.

Problem-Solving Strategy

How can you discover whether a given universal statement about sets is true or false? There are two basic approaches:

  1. Start trying to prove the statement.
  2. Try to find a set of conditions that must be fulfilled to construct a counterexample.

With either approach the trick is to be ready to switch to the other if what you are working on does not look promisin.

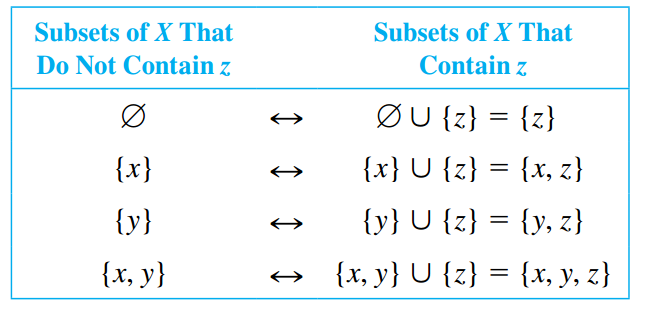

Intuition for The Number of Subsets of a Set

Suppose $X$ is a set and $z$ is an element of $X$

  1. The subsets of $X$ can be split into two groups: those that do not contain $z$ and those that do contain $z$
  2. The subsets of $X$ that do not contain $z$ are the same as the subsets of $X - {z}$.
  3. The subsets of $X$ that do not contain $z$ can be matched up one for one with the subsets of $X$ by matching each subset $A$ that does not contain $z$ to the subset $A \cup {z}$ that contains $z$. Thus there are as many subsets of $X$ that contain $z$ as there are subsets of $X$ that do not contain $z$.

Intuition for the Number of Subsets of a Set

The Number of Subsets of a Set

For every integer $n \geq 0$, if a set $X$ has $n$ elements, then $\mathcal{P}(X)$ has $2^n$ elements.

Proof (by mathematical indcution): Let the property $P(n)$ be:

Any set with $n$ elements has $2^n$ subsets.

Show that $P(0)$ is true. We must show that:

Any set with $0$ eleemnts ahs $2^0$ subsets.

The only set with zero elements is the empty set, and the only subset of the empty set is itself. Thus a set with zero elements has one subset.

Show that for every integer $k \geq 0$, if $P(k)$ is strue then $P(k + 1)$ is also true. Suppose that $k$ is any integer with $k \geq 0$, such that:

Any set with $k$ elements has $2^k$ subsets.

We must show that:

Any set with $k + 1$ elements has $2^{k + 1}$ subsets.

Let $X$ be a set with $k + 1$ elements. Since $k + 1 \geq 1$, we may pick an element $z$ in X. Observe that any subset of $X$ either contains $z$ or does not.

  1. Any subset of $X$ that does not contain $z$ is a subset of $X - {z}$.
  2. Any subset $A$ of $X - {z}$ can be matched up with a subset $B$ equal to $A \cup {z}$ of $X$ that contains $z$.

Consequently, there are as many subset of $X$ that contain $z$ as do not, and thus there are twice as many subsets of $X$ as there are subsets of $X - {z}$. If follows that since $X - {z}$ has $k$ elements, then, by inductive hypothesis, the number of subsets of $X - {z}$ is $2^k$.

Therefore the number of subsets of $X$ is $2 \cdot 2^k = 2^{k + 1}$.

Algebraic Proofs of Set Identitites

New properties can be derived from them algebraically without having to use element method arguments using known properties.

Boolean Algebras, Russell’s Paradox, and the Halting Problem

The essential idea of a Boolean algebra was introduced by the English mathematician/logician George Boole in 1847 in a book entitled The Mathematical Analysis of Logic. In this section we show how to derive the various properties associated with a Boolean algebra from a set of five axioms.

Axioms for a Boolean Algebra

A Boolean algebra is a set $B$ together with two operations, generally denoted $+$ and $\cdot$, such that for all $a$ and $b$ in $B$ both $a + b$ and $a \cdot b$ are in $B$ and the following axioms are assumed to hold:

  1. Commutative Laws: For all $a$ and $b$ in $B$,
$$a + b = b + a \text{ and } a \cdot b = b \cdot a$$
  1. Associative Laws: For all $a$, $b$ and $c$ in $B$,
$$(a + b) + c = a + (b + c) \text{ and } (a \cdot b) \cdot c = a \cdot (b \cdot c)$$
  1. Distributive Laws: For all $a$, $b$ and $c$ in $B$,
$$a \cdot (b + c) = (a \cdot b) + (a \cdot c) \text{ and } a + (b \cdot c) = (a + b) \cdot (a + c)$$
  1. Identity Laws: There exist distint elements $0$ and $1$ in $B$ such that for each $a$ in $B$,
$$a + 0 = a \text{ and } a \cdot 1 = a$$
  1. Complement Laws: For each $a$ in $B$, there exists an element in $B$, denoted $\bar{a}$ and called the complement or negation of f$a$, such taht:
$$a + \bar{a} = 1 \text{ and } a \cdot \bar{a} = 0$$

Properties of a Boolean Algebra

Let $B$ be any Boolean algebra:

  1. Uniqueness of the Complement Laws: For all $a$ and $x$ in $B$, if $a + x = 1$ and $a \cdot x = 0$, then $x = \bar{a}$.

  2. Uniqueness of $0$ and $1$:

  • If there exists $x$ in $B$ such that $a + x = a$ for every $a$ in $B$, then $x = 0$
  • If there exists $y$ in $B$ such that $a \cdot y = a$ for every $a$ in $B$, then $y = 1$
  1. Double Complement Law: For every $a \in B, \bar{(\bar{a})} = a$

  2. Idempotent Laws: For every $a \in B$,

$$a + a = a \text{ and } a \cdot a = a$$
  1. Universal Bound Laws: For every $a \in B$,
$$a + 1 = 1 \text{ and } a \cdot 0 = 0$$
  1. De Morgan’s Laws: For all $a, b \in B$,
$$\bar{a + b} = \bar{a} \cdot \bar{b} \text{ and } \bar{a \cdot b} = \bar{a} + \bar{b}$$
  1. Absorption Laws: For all $a, b \in B$,
$$(a + b) \cdot a = a \text{ and } (a \cdot b) + a = a$$
  1. Complements of $0$ and $1$:
$$\bar{0} = 1 \text{ and } \bar{1} = 0$$

You might have noticed that all parts of the definition of a Boolean algebra and most of its stated properties contain paired statements. Each of the paired statements can be obtained from the other by interchanging all the $+$ and $\cdot$ signs, and interchanging $0$ and $1$. Such interchanges transform any Boolean identity into its dual identity. It can be proved that the dual of any Boolean identity is also an identity. This fact is often called the duality principle for a Boolean algebra.

Russell’s Paradox

By the beginning of the twentieth century, abstract set theory had gained such wide acceptance that a number of mathematicians were working hard to show that all of mathematics could be built upon a foundation of set theory. In the midst of this activity, the English mathematician and philosopher Bertrand Russell discovered a “paradox”.

Russell’s Paradox: Let’s imagine there exists a set that can be an element of itself (e.g. the set of all abstract ideas could be an abstract idea), we can let $S$ be the set of all sets that are not eleemnts of themselves:

$$ S = \{A | A \text{ is a set and } A \notin A\} $$

Then, is $S$ an element of itself? The answer is both yes and no.

  1. Suppose $S \in S$, then $S$ must satisfy the defining property of $S$, that is $S \notin S$, which is a contradiction, therefore the assumption is false and $S \notin S$.
  2. Suppose $S \notin S$, then $S$ satisfies the definition of $S$, that is $S \in S$. Therefore the assumption is false and $S \in S$.

Thus both $S \in S$ and $S \notin S$, which cannot happen because a statement is either true or false. Because of this we are forced to conlude that the situation decribed cannot exist in the world as we know it (see the Barber Puzzle).

The Halting Problem

Alan M. Turing deduced a profound theorem about how computers would have to work. The argument he used is similar to that in Russell’s paradox. This theorem deals with the Halting Problem, which aims to clarify if there could exist an algorithm be written that will accept any algorithm $X$ an any data set $D$ as input and will then print “halts” or “loops forever” to indicate whether $X$ terminates in a finite number of steps. Turing proved that the answer to this question is no.

The Halting Problem

There is no computer algorithm that will accept any algorithm $X$ and data set $D$ as input and then will output “halts” or “loops forever” to indicate whether or not $X$ terminates in a finite number of steps when $X$ is run with data set $D$.

Proof (by contradiction): Suppose there is an algorithm, CheckHalt, such that if an algorithm $X$ and a data set $D$ are input, then

$\text{CheckHalt}(X, D)$ prints

  • “halts” if $X$ terminates in a finite number of steps when run with dataset $D$.
  • “loops forever” if $X$ does not terminate in a finite number of steps when run with dataset $D$.

Observe that the sequence of characters making up an algorithm $X$ can be regarded as a data set itself. Thus it is possible to consider running CheckHalt with input $(X, X)$. Define a new algorithm, Test, as follows: For any input algorithm $X$,

  • $\text{Test}(X)$ loops forever if $\text{CheckHalt}(X, X)$ prints “halts” or
  • $\text{Test}(X)$ steps if $\text{CheckHalt}(X, X)$ prints “loops forever”

Now run algorithm Test with input Test.

  • If $\text{Test}(\text{Test})$ terminates after a finite number of steps, then the value of $\text{CheckHalt}(\text{Test}, \text{Test})$ is “halts” and so $\text{Test}(\text{Test})$ loops forever.
  • If $\text{Test}(\text{Test})$ does not terminate after a finite number of steps, then the value of $\text{CheckHalt}(\text{Test}, \text{Test})$ is “loops forever” and so $\text{Test}(\text{Test})$ terminates.

This shows a contradiction, therefore the supposition must be false and there is no such algorithm like CheckHalt.

The axioms introduced into set theory to avoid Russell’s paradox are not entirely adequate to deal with the full range of recursively defined objects in computer algorithms. One response has been to develop an extension of set theory that includes new objects called hypersets.
