Advanced Docker Concepts

Advanced Docker Concepts

Networking

Bridge

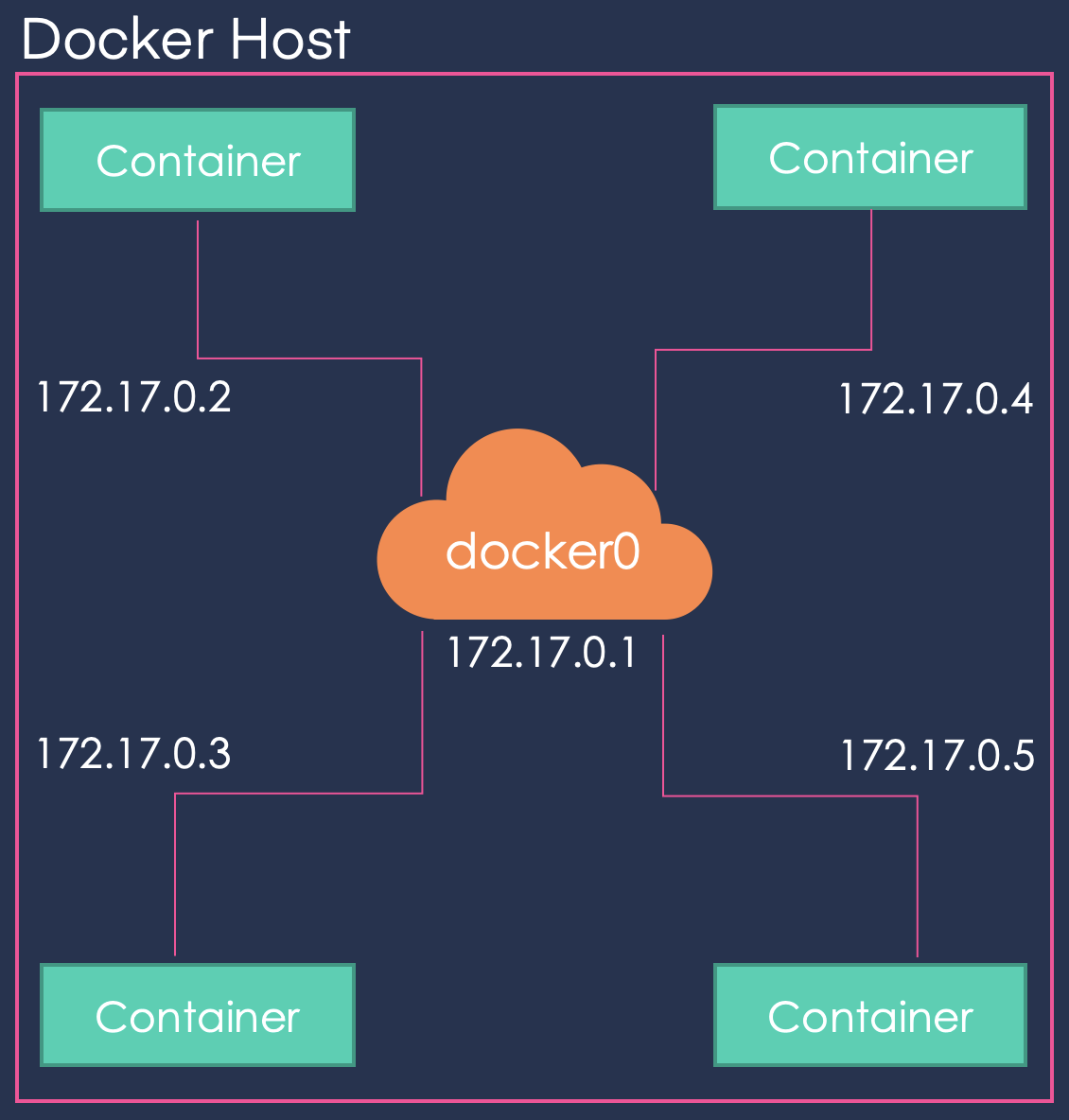

This is a private internal network created by Docker on the host. All containers can access each other using their internal IP (usually subnets of 172.17.0.3).

To access from outside you have to map a port of the container to a port of the host.

Bridge

host

Another way to configure the network is to associate the container to the host’s network, removing all kind of network isolation between the Docker host and the Docker container.

This way when you run a server on port 5000 it would automatically accessible from the host on the port 5000 without needing to map it to a host’s port.

This prevents you from using the same ports for different applications.

none

The containers are not attached to any network and are, therefore, isolated from any other containers so they do not have any access to the external network or other containers.

User defined networks

Because with the default internal network, the containers can access each other, it is sometimes desirable to create new internal networks:

$ docker network create --drive bridge --subnet 172.18.0.0/16 <network_name>

To list the created networks:

$ docker network ls

Inspect network

In order to see the network configuration use inspect and head to the Networks section:

$ docker inspect ( container_name | container_id )

.
.
.
          "MacAddress": "aa:bb:cc:dd:ee:ff",
            "Networks": {
                "bridge": {
                    "IPAMConfig": null,
                    "Links": null,
                    "Aliases": null,
                    "NetworkID": "24af0d...",
                    "EndpointID": "3449a29...",
                    "Gateway": "172.17.0.1",
                    "IPAddress": "172.17.0.3",
                    "IPPrefixLen": 16,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "MacAddress": "02:42:ac:11:00:03",
                    "DriverOpts": null
                }
            }
.
.
.

Embedded DNS

When containers in the same subnet may want to access each other, for that you could hard code the internal IP assigned to the containers. However this is not advisable, as this IP may change when the container is started in another occasion in the future.

Because of that all containers in a Docker host can resolve each other using their names. This is possible has a built-in DNS server for this purpose that runs at 172.0.0.11.

Storage

Layers

Because of Docker’s layered architecture when creating very similar images that share a lot of instructions, it uses the cached layers and is, therefore more efficient by not building each image from scratch.

For example, when you update your application’s source code, only the instructions after the COPY instruction, this one included, from your Dockerfile is run.

Image and Container Layers

The layers created from each instruction on the Dockerfile constitute the image layers and are all read-only files.

When you run your image a new layer is created, denoted by Container Layer which is a writable file which is a writable file. However, when the container is destroyed, this layer is removed. This is the reason why we use volumes for permanent storage.

This is needed because all the containers use the same image, so the changes made in the image by the different containers should not affect the image.

Copy-on-write

Also, the changes made on files stored in the image are not made on the original file. The file is copied to the Container Layer and the changes are made onto this copy.

Volumes

As we have said, we need volumes to store permanent data. So, first we create the volume:

$ docker volume <volume_name>

Which is stored in /var/lib/docker/volumes

Volume mounting

Once we have created the volume, we specify that we want to mount this volume within our container:

$ docker run -v <volume_name>:/var/lib/mysql mysql

If you run this same command, without creating the volume first, Docker will automatically create the volume for you.

Bind mounting

If you want to mount another directory that is not inside /var/lib/docker/volumes, then you have to specify the whole directory’s (may be an absolute or relative path).

$ docker run -v /data/mysql:/var/lib/mysql mysql

Mount

This is the new way to mount:

$ docker run --mount type=bind,source=/data/mysql,target=/var/lib/mysql

Which is preferred as it is more verbose.

Storage Administration

The responsible for all of these operations that happen under the hood are the storage drivers, which are chosen depending on the hosts’ OS:

  • AUFS
  • ZFS
  • BTRFS
  • Device Mapper
  • Overlay
  • Overlay2

Docker Compose

Build

If we would like to tell Docker Compose to build a Docker build instead of pulling an image we use the build keyword inside a service instead of the image keyword. And we specify the location of the directory which contains the application code and a Dockerfile.

vote:
  build: ./vote
  ports:
    - 5000:80
  links:
    - redis

Versions

Different Docker Compose versions have different formats and functionality.

Version 2

From version 2 on, you must specify the Docker Compose version by adding to the top of the file:

version: 2

Also, all of the different containers should be listed under a sevices section.

And now, links are no longer needed as Docker creates a virtual network and attaches all of the services to this network with the name of the service.

Finally, a depends_on keyword is introduced to force a order of startup.

Docker Compose Networks

Let’s start with an example application, which is made up of five services:

  • voting-app: a front-end application for the user to vote.
  • redis: and in-memory database to store the vote.
  • worker: application in the back-end that processes the vote and stores it in the database.
  • db: database in which the vote is stored.
  • result-app: front-end application that shows the voting results.

In this architecture we have two networks:

  • front-end: voting-app and result-app
  • back-end: all the services.

Therefore it is desirable to define two networks in our docker-compose and attach the networks to the services:

version: 2
services:
  redis:
    image: redis
    networks:
      - back-end
  db:
    image: postgres
    networks:
      - front-end
  vote:
    image: voting-app
    networks:
      - front-end
      - back-end
  result:
    image: result
    networks:
      - front-end
      - back-end
  worker:
    image: worker
    networks:
      - front-end
      - back-end

networks:
  - front-end:
  - back-end:

As you can see we define two networks: front-end and back-end (note that we have omitted the configuration of the networks) and then for each service we specify the network to which the service has access (also, observe that the configuration of the services has been trimmed down for readability purposes).

Docker Registry

Public Registry

In the following example you are pulling the nginx image, which in reality is stored as nginx/nginx where the first nginx corresponds to the user name, and the second to the image name.

image: nginx

This is a public image so it is stored in a public registry, usually in docker.io which is the default registry. So a more verbose configuration file would be:

image: docker.io/nginx/nginx

Private Registry

When you have applications that should no be made available to the public private registries are used.

To pull or use an image from a private registry:

  1. Register into the private registry:
$ docker login private-registry.io
  1. Run the image indicating the registry:
$ docker run private-registry.io/apps/internal-app

Deploy Private Registry

A private registry is in itself a docker image, so first you have to have your registry image running:

$ docker run -p 5000:5000 --name registry registry:2

So now you have your registry running on port 5000. The next step is to assign a tag to your image as follows:

$ docker image tag my-image localhost:5000/my-image

Where my-image is the name of the image and localhost:5000/my-image is the tag assigned.

Finally you push your image to your registry

$ docker push localhost:5000/my-image

Now you can pull your image:

$ docker pull localhost:5000/my-image
$ docker pull 192.168.56.100:5000/my-image

Docker Engine

Containerization

As we have seen all of our containers run on top of the same operative system, so it is a given that the processes will be handled by the same kernel. This means that the processes of our containers are run along with the rest of processes in the host machine, in other words the PIDs of all the processes must be different.

What Docker does to isolate these processes is the container is using namespaces and maps the process id to another process id within the container, and that is visible only on this container.

cgroups

Because all docker containers share the hosts resources it could be possible that a container takes up all of the machine’s resources. So, to restrict the amount of resources used by a container Docker uses cgroups. You can specify the amount of CPU or RAM that the container is allowed to have:

$ docker run --cpus=.5 ubuntu
$ docker run --memory=100m ubuntu

Docker on Windows and Mac

Windows Containers

The options just discussed will only work for Linux applications and containers. In 2016 Microsoft announced support for Windows containers, there are two types:

  • Windows Server Container: the containers share the kernel, as regular Linux containers do.
  • Hyper-V isolation: each container is run within a highly optimized virtual machine, so complete kernel isolation between the containers and the underline host is guaranteed.

Base Images

Where in Linux we had the debian, ubuntu or alpine base images in windows we have two options:

  • Windows Server Core
  • Nano Server: this is a headless deploy of the Windows Server, that is, the lightweight option.
