SLAM
Graph SLAM
Suppose we have a robot whose initial position is $x_0 = 0$ and $y_0 = 0$ at time $0$, then at time $1$ (because of how we mode our motion) the robot is at $x_1 = x_0 + 10$ and $y_1 = y_0$. However we know that our location is uncertain therefore the position at time $1$ is really described by a gaussian distribution centered around $10$ and with a given variance that signifies how certain we are about our position.
So to express this with a gaussian, that we do is define a distribution whose pdf peaks when $x_1 = x_0 + 10$ and $y_1 = y_0$, therefore we would like to maximize both the following equations:
$$ \begin{aligned} \frac{1}{\sqrt{2\pi\sigma^2}}\exp{-\frac{1}{2}\frac{(x_1-x_0-10)^2}{\sigma^2}} \end{aligned} $$$$ \begin{aligned} \frac{1}{\sqrt{2\pi\sigma^2}}\exp{-\frac{1}{2}\frac{(y_1 - y_0)^2}{\sigma^2}} \end{aligned} $$Here if $x_1 = x_0 + 10$, then $x_1 - x_0 - 10 = 0$ and if $y_1 = y_0$ ,then $y_1 - y_0 = 0$. These conditions we define are called constraints, so what Graph SLAM does is creating our probabilities defining a sequence of these constraints.

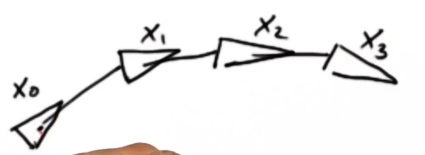

Suppose we have a robot that has followed the following path:

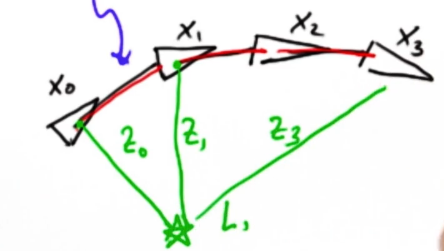

Where each $x_i$ is a vector (usually a three dimensional vector) Then Graph SLAM defines the following constraints:
- Initial position constraint: $x_0$
- Relative motion constraints: $(x-1 - x_0)$, $(x-2 - x_1)$, $(x-3 - x_2)$ (indicated by the red lines). Ideally these are the same as the robot motion (direction vector), however in reality it tends to bend to accommodate the map.
- Relative measurement constraints: these are the segment between each position vector (not necessarily every position vector) and each landmark defined in the map, and are also captured by gaussian distributions. In our case $z_0, z_1, z_2, z_3$, the lines colored in green.
After we have collected these constraints, what the algorithm does is it relaxes the position vectors $x_i$ to find the most likely configuration of robot path for the given landmarks (that is measurements of distance to the landmark).
Constraint Matrix
To define our constraints, suppose we have 3 position vectors $x_0, x_1, x_2$ and two landmarks $L_0, L_1$, then we define the following matrix:
$$ \begin{array}{c} \begin{array}{c|ccccc} - & x_0 & x_1 & x_2 & L_0 & L_1 \end{array} \\[5pt] \begin{matrix} x_0 \\ x_1 \\ x_2 \\ L_0 \\ L_1 \end{matrix} \quad \begin{bmatrix} 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \end{bmatrix} \quad \begin{bmatrix} 0.0 \\ 0.0 \\ 0.0 \\ 0.0 \\ 0.0 \end{bmatrix} \end{array} $$We denote this structure as follows:
$$ \begin{aligned} \Omega = \begin{bmatrix} 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \end{bmatrix} \end{aligned} $$and:
$$ \begin{aligned} \xi = \begin{bmatrix} 0.0 \\ 0.0 \\ 0.0 \\ 0.0 \\ 0.0 \end{bmatrix} \end{aligned} $$Suppose $x_0$ moves to $x_1$ by moving $5$ units to the right, that is $x_1 = x_0 + 5$, then we define this constrain in the matrix as follows:
$$ \begin{aligned} \begin{array}{c} \begin{array}{c|ccccc} - & x_0 & x_1 & x_2 & L_0 & L_1 \end{array} \\[5pt] \begin{matrix} x_0 \\ x_1 \\ x_2 \\ L_0 \\ L_1 \end{matrix} \quad \begin{bmatrix} 1.0 & -1.0 & 0.0 & 0.0 & 0.0 \\ -1.0 & 1.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \end{bmatrix} \quad \begin{bmatrix} -5.0 \\ 5.0 \\ 0.0 \\ 0.0 \\ 0.0 \end{bmatrix} \end{array} \end{aligned} $$Because given the initial constraint $x_1 = x_0 + 5$, if we move around the $x_i$ we get:
$$ \begin{aligned} x_0 - x_1 = -5 \end{aligned} $$$$ \begin{aligned} x_1 - x_0 = 5 \end{aligned} $$Now we add another constraint $x2 = x_1 - 4$, therefore:
$$ \begin{aligned} x_2 - x_1 = -4 \end{aligned} $$$$ \begin{aligned} x_1 - x_2 = 4 \end{aligned} $$So the constraint matrix is updated to:
$$ \begin{aligned} \begin{array}{c} \begin{array}{c|ccccc} - & x_0 & x_1 & x_2 & L_0 & L_1 \end{array} \\[5pt] \begin{matrix} x_0 \\ x_1 \\ x_2 \\ L_0 \\ L_1 \end{matrix} \quad \begin{bmatrix} 1.0 & -1.0 & 0.0 & 0.0 & 0.0 \\ -1.0 & 1.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \end{bmatrix} \quad \begin{bmatrix} -5.0 \\ 5.0 \\ 0.0 \\ 0.0 \\ 0.0 \end{bmatrix} \end{array} \end{aligned} $$We add a relative measurement constraint like $L_0 - x_1 = 9$, therefore:
$$ \begin{aligned} L_0 - x_1 = 9 \end{aligned} $$$$ \begin{aligned} x_1 - L_0 = -9 \end{aligned} $$So the constraint matrix is updated to:
$$ \begin{aligned} \begin{array}{c} \begin{array}{c|ccccc} - & x_0 & x_1 & x_2 & L_0 & L_1 \end{array} \\[5pt] \begin{matrix} x_0 \\ x_1 \\ x_2 \\ L_0 \\ L_1 \end{matrix} \quad \begin{bmatrix} 1.0 & -1.0 & 0.0 & 0.0 & 0.0 \\ -1.0 & 3.0 & -1.0 & -1.0 & 0.0 \\ 0.0 & -1.0 & 1.0 & 0.0 & 0.0 \\ 0.0 & -1.0 & 0.0 & 1.0 & 0.0 \\ 0.0 & 0.0 & 0.0 & 0.0 & 0.0 \end{bmatrix} \quad \begin{bmatrix} -5.0 \\ 0.0 \\ -4.0 \\ 9.0 \\ 0.0 \end{bmatrix} \end{array} \end{aligned} $$Note that whenever we add a constraint to two parameters, let’s say $x_1$ and $x_2$, we sum one to the diagonal element of the matrix corresponding to $x_1$ and $x_2$.
Noise

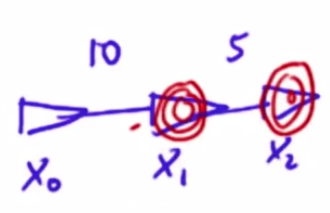

Given the following motion:
We know that the localization of our robot is not an exact value, but is is modeled after a gaussian distribution, so $x_1 \sim \mathcal{N}(\mu_{x_1}, \sigma_{x_1})$ and $x_2 \sim \mathcal{N}(\mu_{x_2}, \sigma_{x_2})$. Suppose $\sigma_{x_1} = \sigma_{x_2}$. Then we want to maximize the expected value, which is given by the expressions:
$$ \begin{aligned} \frac{1}{\sqrt{2\pi\sigma^2}}\exp{-\frac{1}{2}\frac{(x_1-x_0-10)^2}{\sigma^2}} \end{aligned} $$$$ \begin{aligned} \frac{1}{\sqrt{2\pi\sigma^2}}\exp{-\frac{1}{2}\frac{(x_2 - x_1 -5)^2}{\sigma^2}} \end{aligned} $$To maximize both expressions means to maximize their product:
$$ \begin{aligned} \max_{x_0, x_1, x_2} \frac{1}{\sqrt{2\pi\sigma^2}}\exp{-\frac{1}{2}\frac{(x_1-x_0-10)^2}{\sigma^2}} \cdot \frac{1}{\sqrt{2\pi\sigma^2}}\exp{-\frac{1}{2}\frac{(x_2 - x_1 -5)^2}{\sigma^2}} \end{aligned} $$We also know that constants are irrelevant during maximization:
$$ \begin{aligned} \max_{x_0, x_1, x_2} \exp{-\frac{1}{2}\frac{(x_1-x_0-10)^2}{\sigma^2}} \cdot \exp{-\frac{1}{2}\frac{(x_2 - x_1 -5)^2}{\sigma^2}} \end{aligned} $$This maximization is equivalent to the maximization of its logarithm:
$$ \begin{aligned} \max_{x_0, x_1, x_2} \log \left(\exp{-\frac{1}{2}\frac{(x_1-x_0-10)^2}{\sigma^2}} \cdot \exp{-\frac{1}{2}\frac{(x_2 - x_1 -5)^2}{\sigma^2}}\right) \end{aligned} $$Because the logarithm of a product equal the sum of logarithms:
$$ \begin{aligned} \max_{x_0, x_1, x_2} \left(\log \exp{-\frac{1}{2}\frac{(x_1-x_0-10)^2}{\sigma^2}}\right) + \left(\log \exp{-\frac{1}{2}\frac{(x_2 - x_1 -5)^2}{\sigma^2}}\right) \end{aligned} $$Given $\log \exp (x) = x$:
$$ \begin{aligned} \max_{x_0, x_1, x_2} \left(-\frac{1}{2}\frac{(x_1-x_0-10)^2}{\sigma^2}\right) + \left(-\frac{1}{2}\frac{(x_2 - x_1 -50)^2}{\sigma^2}\right) \end{aligned} $$Again, constants are irrelevant:
$$ \begin{aligned} \max_{x_0, x_1, x_2} \left(\frac{(x_1-x_0-10)^2}{\sigma^2}\right) + \left(\frac{(x_2 - x_1 -5)^2}{\sigma^2}\right) \end{aligned} $$So, we end up with equations of the form:
$$ \begin{aligned} \frac{1}{\sigma} x_1 - \frac{1}{\sigma} x_0 = \frac{10}{\sigma} \end{aligned} $$Where now $\sigma$ symbolizes how confident you are in your location/measurement. Usually we define a $\sigma$ for the location and another $\sigma_{measurement}$ for the measurement (distance to the landmark).
