Build Your Own React (Reakt)

Review

We’ll use this React app, just three lines of code. The first one defines a React element. The next one gets a node from the DOM. The last one renders the React element into the container.

const element = <h1 title="foo">Hello</h1>;
const container = document.getElementById("root");
ReactDOM.render(element, container);

Let’s remove all the React specific code and replace it with vanilla JavaScript.

On the first line we have the element, defined with JSX. It isn’t even valid JavaScript, so in order to replace it with vanilla JS, first we need to replace it with valid JS.

JSX is transformed to JS by build tools like Babel. The transformation is usually simple: replace the code inside the tags with a call to createElement, passing the tag name, the props and the children as parameters.

React.createElement creates an object from its arguments. Besides some validations, that’s all it does. So we can safely replace the function call with its output.

<html>
  <head>
    <script
      crossorigin
      src="https://unpkg.com/react@18/umd/react.production.min.js"
    ></script>
    <script
      crossorigin
      src="https://unpkg.com/react-dom@18/umd/react-dom.production.min.js"
    ></script>
  </head>
  <body>
    <script>
      const setup = () => {
        // Create an h1 element using Reacts API
        // This is equivalent to creating an element using JSX, and then having
        // whichever build tool compile it to javascript syntax, as follows:
        const element = React.createElement("h1", { title: "foo" }, "Hello");
        const root = document.getElementById("root");

        // Update the DOM
        ReactDOM.render(element, root);
      };
      window.onload = setup;
    </script>
    <div id="root"></div>
  </body>
</html>

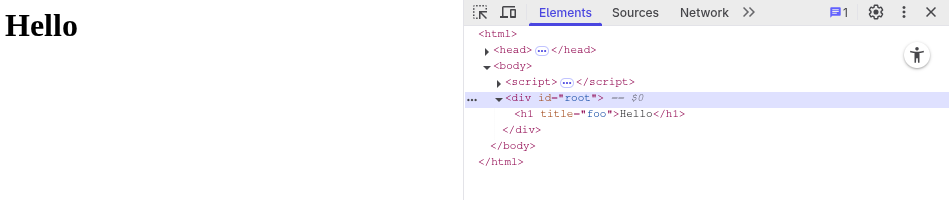

Render Output

And this is what an element is, an object with two properties: type and props (well, it has more, but we only care about these two).

The type is a string that specifies the type of the DOM node we want to create, it’s the tagName you pass to document.createElement when you want to create an HTML element. It can also be a function.
props is another object, it has all the keys and values from the JSX attributes. It also has a special property: children.
children in this case is a string, namely Hello, but it’s usually an array with more elements. That’s why elements are also trees.

The other piece of React code we need to replace is the call to ReactDOM.render. render is where React changes the DOM, so let’s do the updates ourselves.

We can re-implement this same logic without using React.

<html>
  <head>
    <title>Reakt Review</title>
  </head>
  <body>
    <script>
      const setup = () => {
        // Create an h1 element using only the DOMs API
        const element = {
          type: "h1",
          props: {
            title: "foo",
            children: "Hello",
          },
        };
        const root = document.getElementById("root");

        // We follow the same pattern
        // 1. Create the h1 element
        const h1Node = document.createElement(element.type);

        // 2. Add the props to the node
        h1Node["title"] = element.props.title;

        // 3. Add the children to the node, in this case a simple text element
        const textNode = document.createTextNode("");
        textNode["nodeValue"] = element.props.children;

        // 4. Update the DOM by adding each element to the DOM
        h1Node.appendChild(textNode);
        root.appendChild(h1Node);
      };
      window.onload = setup;
    </script>
    <div id="root"></div>
  </body>
</html>

First we create a node* using the element type, in this case h1. Then we assign all the element props to that node. Here it’s just the title.

* To avoid confusion, I’ll use “element” to refer to React elements and “node” for DOM elements.

Then we create the nodes for the children. We only have a string as a child so we create a text node.

Using textNode instead of setting innerText will allow us to treat all elements in the same way later. Note also how we set the nodeValue like we did it with the h1 title, it’s almost as if the string had props: {nodeValue: "hello"}.

Finally, we append the textNode to the h1 and the h1 to the root.

Render Output

The `createElement` Function

Let’s start again with another app. This time we’ll replace React code with our own version of React. We’ll start by writing our own createElement.

As we saw in the previous step, an element is an object with type and props. The only thing that our function needs to do is create that object.

/**
 * Creates a virtual DOM element with the specified type, props, and children.
 *
 * @template T - The type of the props object
 * @param type - The element type (e.g., "div", "span", or a component)
 * @param props - The properties/attributes to apply to the element
 * @param children - Variable number of child elements (strings are automatically converted to text elements)
 * @returns An element object with the specified type, props, and children
 *
 * @example
 * ```ts
 * createElement("div", { id: "container" }, "Hello", "World")
 * createElement("span", { className: "text" }, createElement("strong", {}, "Bold"))
 * ```
 */
export const createElement = <T extends ReaktElementProps>(
  type: ReaktElement<T>["type"],
  props: ReaktElement<T>["props"],
  // Children is always an array
  ...children: ReaktElement[]
): ReaktElement<T> => {
  return {
    type,
    props: {
      ...props,
      children,
    },
  };
};

We use the spread operator for the props and the rest parameter syntax for the children, this way the children prop will always be an array.

For example, createElement("div") returns:

{
  "type": "div",
  "props": { "children": [] }
}

The children array could also contain primitive values like strings or numbers. So we’ll wrap everything that isn’t an object inside its own element and create a special type for them: TEXT_ELEMENT.

React doesn’t wrap primitive values or create empty arrays when there aren’t children, but we do it because it will simplify our code

/**
 * Creates a text element from a string value.
 *
 * @param value - The text content to convert into an element
 * @returns An element object with type "PRIMITIVE_ELEMENT_TYPE" and the value as nodeValue
 */
const createPrimitiveElement = (value: string): PrimitiveReaktElement => {
  return {
    type: PRIMITIVE_ELEMENT_TYPE,
    props: {
      nodeValue: value,
      children: [],
    },
  };
};

Now, if we were to create a typical React component within our example app as follows:

// index.js
import * as Reakt from "reakt";

const Element = (
  <div id="foo">
    <a href="https://github.com/albamr09">bar</a>
    <b />
  </div>
);

// This outputs the result from calling Reakt.createElement!!
console.log(Element);

// index.html
<html>
  <head>
    <title>Create Element</title>
    <script src="index.js" type="module"></script>
  </head>
  <body>
    <div id="root"></div>
  </body>
</html>

We would see the following when we open index.html

Visualization Example

The `render` Function

Next, we need to write our version of the ReactDOM.render function. For now, we only care about adding stuff to the DOM. We’ll handle updating and deleting later. The entry point for this function will look as follows:

/**
 * Renders a virtual DOM element to the actual DOM.
 *
 * @param container - The DOM container where the element should be rendered
 * @param element - The virtual DOM element to render
 */
export const render = (container: HTMLElement, element: ReaktElement): void => {
  if (isPrimitiveElement(element)) {
    const domNode = createPrimitiveNode({ element });
    container.appendChild(domNode);
    return;
  }

  const domNode = createNode({ element });
  container.appendChild(domNode);
};

As you can see this function calls createPrimitiveNode and createNode. The first one, createPrimitiveNode has the responsibility of creating a DOM node that only stores text, that is:

/**
 * Creates a text node from a primitive element.
 *
 * @param element - The primitive element to create a text node from
 * @returns The created text node
 */
const createPrimitiveNode = ({
  element,
}: {
  element: PrimitiveReaktElement;
}) => {
  const { nodeValue } = element.props;
  const domNode = document.createTextNode(nodeValue);
  return domNode;
};

While createNode processes a full fleshed DOM node, which may be of any arbitrary type and might have any number and type of children:

/**
 * Creates a DOM node from a virtual element.
 *
 * @param element - The virtual element to create a DOM node from
 * @returns The created DOM node
 */
const createNode = ({ element }: { element: ReaktElement }) => {
  const { children, ...props } = element.props;

  const domNode = document.createElement(element.type);
  addProps({ node: domNode, props });
  children.forEach((child) => {
    render(domNode, child);
  });
  return domNode;
};

On the previous function we have to take care of two main things:

Adding the element props to the DOM node.
Processing every child present on the element. Note how this step calls render again, making the render function recursive. That is the render process is applied as many times as elements there are on the Virtual DOM.

Once all of this is implemented we can now use Reakt.render(root, element); to render any Reakt component we want (not really, for now we can only handle native HTML tags):

// index.html
<html>
  <head>
    <title>Render Function Time!</title>
    <script src="index.js" type="module"></script>
  </head>
  <body>
    <div id="root"></div>
  </body>
</html>

// index.ts
import * as Reakt from "reakt";

// Look at how we have defined this using Reakt syntax
// The transpiler is calling Reakt.createElement internally, thus generating
// Element = { type: "div", props: { id: "foo", children: [...] } }
const Element = (
	<div id="foo">
		<a href="https://github.com/albamr09">OMG!!</a>
		<b />
	</div>
);

const root = document.getElementById("root");
// We use our render function to append Element to the root div on the index.html
Reakt.render(root!, Element);

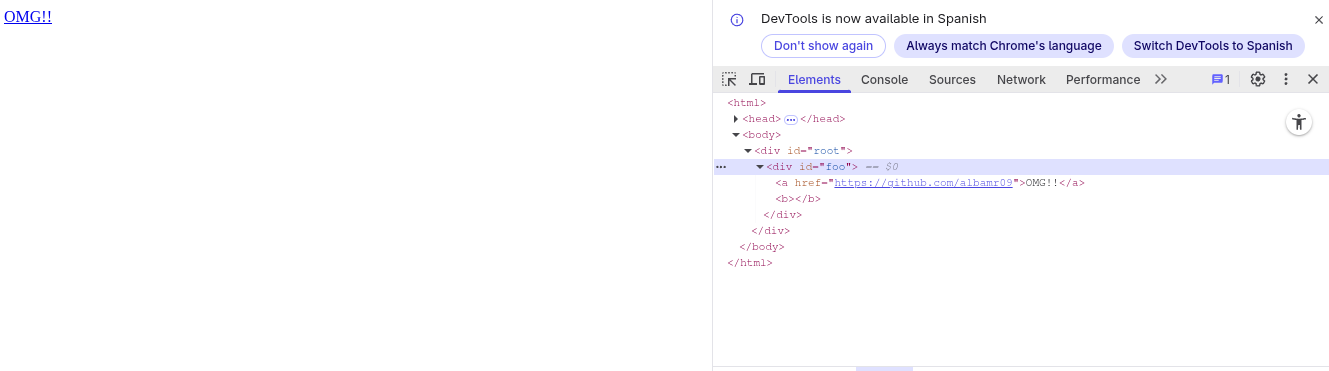

Render Function Example

Concurrent Mode

But… before we start adding more code we need a refactor.

There’s a problem with this recursive call.

Once we start rendering, we won’t stop until we have rendered the complete element tree. If the element tree is big, it may block the main thread for too long. And if the browser needs to do high priority stuff like handling user input or keeping an animation smooth, it will have to wait until the render finishes.

So we are going to break the work into small units, and after we finish each unit we’ll let the browser interrupt the rendering if there’s anything else that needs to be done.

/**
 * Renders a virtual DOM element to the actual DOM.
 *
 * @param container - The DOM container where the element should be rendered
 * @param element - The virtual DOM element to render
 */
export const render = (container: HTMLElement, element: ReaktElement): void => {
  const rootFiber = createRootFiber({ container, element });
  startWorkLoop(rootFiber);
};

We use requestIdleCallback to make a loop. You can think of requestIdleCallback as a setTimeout, but instead of us telling it when to run, the browser will run the callback when the main thread is idle.

React doesn’t use requestIdleCallback anymore. But for this use case it’s conceptually the same.

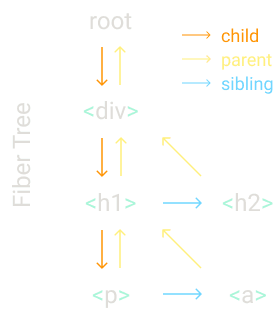

To organize the units of work we’ll need a data structure: a fiber tree. We’ll have one fiber for each element and each fiber will be a unit of work.

Fiber Tree

In the render we’ll create the root fiber and set it as the currentFiber. The rest of the work will happen on the performUnitOfWork function, there we will do three things for each fiber:

Add the element to the DOM (commitFiberToDOM)
Create the fibers for the element’s children (createChildFibers)
Select the next unit of work (findNextFiberInTraversal)

/**
 * Starts the work loop to process fibers and render them to the DOM.
 *
 * Begins processing the fiber tree using requestIdleCallback for incremental rendering.
 * The work loop will continue until all fibers have been processed or the browser
 * needs to yield control for other tasks.
 *
 * @param rootFiber - The root fiber to start processing from. Should be created using
 *                    `createRootFiber` before calling this function.
 */
export const startWorkLoop = (rootFiber: Fiber): void => {
  let currentFiber: Fiber | undefined = rootFiber;

  const workLoop: IdleRequestCallback = (deadline) => {
    let shouldYield = false;
    while (currentFiber !== undefined && !shouldYield) {
      currentFiber = performUnitOfWork(currentFiber);
      shouldYield = deadline.timeRemaining() < 1;
    }

    // If there are still fibers to process, schedule the next work loop
    if (currentFiber !== undefined) {
      requestIdleCallback(workLoop);
    }
  };

  requestIdleCallback(workLoop);
};

To start using the work loop we’ll need to set the first unit of work, and then write a performUnitOfWork function that not only performs the work but also returns the next unit of work.

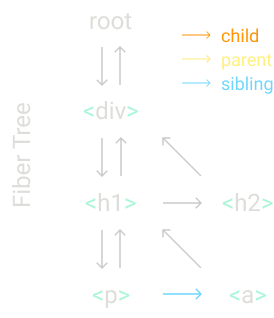

One of the goals of this data structure is to make it easy to find the next unit of work. That’s why each fiber has a link to its first child, its next sibling and its parent.

Fiber Tree

When we finish performing work on a fiber, if it has a child that fiber will be the next unit of work. If the fiber doesn’t have a child, we use the sibling as the next unit of work.

And if the fiber doesn’t have a child nor a sibling we go to the “uncle”: the sibling of the parent.

/**
 * Performs a unit of work on a fiber: commits it to the DOM, creates child fibers, and returns the next fiber to process.
 *
 * This function processes a single fiber in the work loop by:
 * 1. Validating that the fiber has a valid parent with a DOM node
 * 2. Creating and appending the fiber's DOM node to its parent
 * 3. Creating child fibers from the element's children
 * 4. Returning the next fiber to process in the depth-first traversal
 *
 * @param fiber - The fiber to process. Must have a valid parent with a DOM node (HTMLElement, not Text).
 * @returns The next fiber to process in the traversal, or `undefined` if the fiber has an invalid parent.
 * @throws {Error} If the fiber structure is invalid and cannot be recovered from.
 */
const performUnitOfWork = (fiber: Fiber): Fiber | undefined => {
  if (!doesFiberHaveValidParent(fiber)) {
    // Some error handling code
    return undefined;
  }

  fiber = commitFiberToDOM(fiber);
  fiber = createChildFibers(fiber);
  return findNextFiberInTraversal(fiber);
};

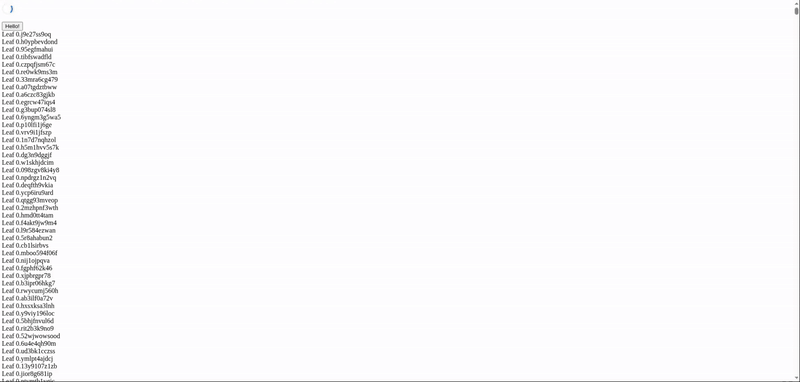

On the following example you can see this asynchronous mode at work, we are trying to render many elements on the page. But the browser is able to capture user input (e.g. the scrolling down) and act accordingly while updating the page with the new elements that are being rendered.

Fiber Demo

Render and Commit Phases

We are adding a new node to the DOM each time we work on an element. And, remember, the browser could interrupt our work before we finish rendering the whole tree. In that case, the user will see an incomplete UI. And we don’t want that. So we need to remove the part that mutates the DOM from here, that is we have to modify the function commitFiberToDOM, which does exactly what we are explaining.

Thus now, this function will be called createNodeFromFiber:

const performUnitOfWork = (fiber: Fiber): Fiber | undefined => {
  if (!doesFiberHaveValidParent(fiber)) {
    // Some error handling code
    return undefined;
  }

  // Now the resonsibility of this function is only to create the DOM node, it does
  // not add it to the DOM yet
  fiber = createNodeFromFiber(fiber);
  fiber = createChildFibers(fiber);
  return findNextFiberInTraversal(fiber);
};

Also, as we are not commiting nothing to the DOM, we have to somewhat save our “Virtual DOM” made up of fibers, so that we can traverse it later on and add each element to the DOM. This is done as follows:

// We will use rootFiber as the entry point to our Virtual DOM
export const startWorkLoop = (rootFiber: Fiber): void => {
  let currentFiber: Fiber | undefined = rootFiber;

  const workLoop: IdleRequestCallback = (deadline) => {
    let shouldYield = false;
    while (currentFiber !== undefined && !shouldYield) {
      currentFiber = performUnitOfWork(currentFiber);
      shouldYield = deadline.timeRemaining() < 1;
    }

    // THIS CONDITION IS THE MAIN CHANGE
    // Now, when work loop finishes (all fibers have been created)
    // we "commit" everything from the virtual DOM to the DOM
    if (currentFiber === undefined && rootFiber) {
      commitFiberRoot(rootFiber);
      return;
    }

    // If there are still fibers to process, schedule the next work loop
    requestIdleCallback(workLoop);
  };

  requestIdleCallback(workLoop);
};

How does this commit work take place? Well the only thing we have to do is, for each fiber

Add the DOM node created for that fiber to the DOM node of its parent.
Continue recursively through its child
Continue recursively through its sibling

If follows the same flow as for the processing of the elements:

Fiber Tree

/**
 * Commits the entire fiber tree to the DOM, starting from the root fiber.
 *
 * This function initiates the commit phase, which recursively traverses the fiber tree
 * and appends all fiber DOM nodes to their respective parent DOM nodes in the actual DOM.
 * This is called after all fibers have been processed in the work loop.
 *
 * @param rootFiber - The root fiber of the fiber tree to commit to the DOM.
 */
export const commitFiberRoot = (rootFiber: Fiber) => {
  commitWork(rootFiber);
};

/**
 * Recursively commits a fiber and its descendants to the DOM.
 *
 * Traverses the fiber tree in a depth-first manner, appending each fiber's DOM node
 * to its parent's DOM node. Skips fibers that don't have a DOM node or a valid parent.
 *
 * @param fiber - The fiber to commit. If undefined or if the fiber has no DOM node,
 *                the function returns early without processing.
 */
const commitWork = (fiber?: Fiber) => {
  const domParent = fiber?.parent?.dom;
  if (!fiber?.dom || !domParent) {
    return;
  }

  domParent.appendChild(fiber.dom);

  commitWork(fiber.child);
  commitWork(fiber.sibling);
};

Build Your Own React (Reakt)

Review

The createElement Function

The render Function

Concurrent Mode

Render and Commit Phases

The `createElement` Function

The `render` Function
