Advanced Techniques

Post-Processing

Post-processing is the process of adding effects by re-rendering the image of the scene with a shader that alters the final image. Some examples include the following:

• Grayscale
• Sepia tone
• Inverted colors
• Film grain
• Blur
• Wavy/dizzy effect

The basic technique for creating these effects is:

1. Create a framebuffer with the same dimensions as the canvas and have the entire scene rendered to it at the beginning of the draw cycle.
2. A quad is rendered to the default framebuffer using the texture that makes up the framebuffer’s color attachment.
3. The shader used during the rendering of the quad is what contains the post-process effect. This shader can transform the color values of the rendered scene.

Creating the Framebuffer

Since the texture will be exactly the same size as the canvas, and since we’re rendering it as a full-screen quad, we’ve created a situation where the texture will be displayed at exactly a 1:1 ratio on the screen. This means that no filters need to be applied and that we can use NEAREST filtering with no visual artifacts.

Creating the Geometry

// 1. Define the geometry for the full-screen quad
const vertices = [-1, -1, 1, -1, -1, 1, -1, 1, 1, -1, 1, 1];
const textureCoords = [0, 0, 1, 0, 0, 1, 0, 1, 1, 0, 1, 1];

// 2. Create and bind VAO
const vao = gl.createVertexArray();
gl.bindVertexArray(vao);
// 3. Init the buffers
const vertexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer);
gl.bufferData(
  gl.ARRAY_BUFFER,
  new Float32Array(vertices),
  // Configure instructions for VAO
  gl.STATIC_DRAW
);
gl.enableVertexAttribArray(program.aVertexPosition);
gl.vertexAttribPointer(program.aVertexPosition, 3, gl.FLOAT, false, 0, 0);
const textureBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, textureBuffer);
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(textureCoords), gl.STATIC_DRAW);
// Configure instructions for VAO
gl.enableVertexAttribArray(program.aVertexTextureCoords);
gl.vertexAttribPointer(program.aVertexTextureCoords, 2, gl.FLOAT, false, 0, 0);
// 4. Clean up
gl.bindVertexArray(null);
gl.bindBuffer(gl.ARRAY_BUFFER, null);

Setting up the Shader

#version 300 es

precision mediump float;

in vec2 aVertexPosition;
in vec2 aVertexTextureCoords;

out vec2 vTextureCoords;

void main(void) {
    vTextureCoords = aVertexTextureCoords;
    gl_Position = vec4(aVertexPosition, 0.0, 1.0);
}

Notice that unlike the other vertex shaders we’ve worked with so far, this one doesn’t use any matrices. That’s because the vertices we declared in the previous step are pretransformed. Our vertex positions are already mapped to a $[-1, 1]$ range; therefore, no transformation is needed because they will map perfectly to the viewport bounds when we render.

The fragment shader is where most of the interesting operations happen. The fragment shader will be different for every post-process effect. Let’s look at a simple grayscale effect:

#version 300 es

precision mediump float;

uniform sampler2D uSampler;
in vec2 vTextureCoords;
out vec4 fragColor;

void main(void) {
    vec4 frameColor = texture(uSampler, vTextureCoords);
    float luminance = frameColor.r * 0.3 + frameColor.g * 0.59 + frameColor.b* 0.11;
        fragColor = vec4(luminance, luminance, luminance, frameColor.a);
}

Point Sprites

A particle effect is a generic term for any special effect created by rendering groups of particles (displayed as points, textured quads, or repeated geometry) that are difficult to represent by a single geometric model.

One very efficient way of rendering particles is to use point sprites. You must render vertices with the POINTS primitive type, then each vertex will be rendered as a single pixel on screen.

A point stype is created by setting the gl_PointSize value in the vertex shader. If it’s set to a number greater than one, the point is rendered as a quad that always faces the screen (also known as a billboard). The quad is centered on the original point and has a width and height equal to the gl_PointSize in pixels:

When the point sprite is rendered, it also generates texture coordinates for the quad, covering a simple $[0, 1]$ range from the upper left to the lower right:

The texture coordinates are accessible in the fragment shader by the built-in vec2 gl_PointCoord. Combining these properties gives us a simple point sprite vertex shader that looks like this:

#version 300 es

precision mediump float;

uniform mat4 uModelViewMatrix;
uniform mat4 uProjectionMatrix;
uniform float uPointSize;

in vec4 aParticle;

out float vLifespan;

void main(void) {
  gl_Position = uProjectionMatrix * uModelViewMatrix * vec4(aParticle.xyz, 1.0);

  vLifespan = aParticle.w;

  gl_PointSize = uPointSize * vLifespan;
}

The corresponding fragment shader looks like this:

#version 300 es

precision mediump float;

uniform sampler2D uSampler;

in float vLifespan;

out vec4 fragColor;

void main(void) {
  vec4 texColor = texture(uSampler, gl_PointCoord);
  fragColor = vec4(texColor.rgb, texColor.a * vLifespan);
}

Normal Mapping

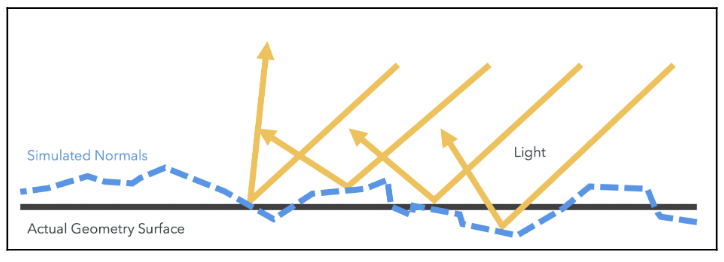

With normal mapping, the surface normals are replaced by normals that are encoded in a texture that give the appearance of a rough or bumpy surface. Note that the actual geometry is not changed when using a normal map – only how it’s lit changes.

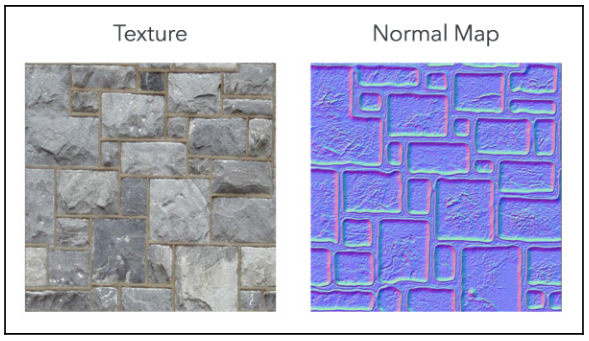

The texture used to store the normals is called a normal map, and it’s typically paired with a specific diffuse texture

The normal map contains custom-formatted color information that can be interpreted by the shader at runtime as a fragment normal. A fragment normal is a three-component vector that points away from the surface. The normal texture encodes the three components of the normal vector into the three channels of the texture’s texel color.

Tangent Space

The normals that have been encoded are typically stored in tangent space, as opposed to world or object space. The tangent space is a special basis that is attached to the surfacee, so instead of using thw world’s $x$, $y$ and $z$ we define the following three vectors:

• Tangent vector: the vector that is tangent (thus parallel) to the surface in a given point, by definition this vector is perpendicular to the normal vector. Defines the $\text{x-axis}$ with respect to the Tangent Space.
• Bitangent or binormal vector: the vector that is parallel to the surface and perpendicular to the tangent vector. This vector is also perpendicular to the normal vector. Defines the $\text{y-axis}$ with respect to the Tangent Space.
• Normal vector: the vector that is perpendicular to the surface in a given point. Defines the $\text{z-axis}$ with respect to the Tangent Space.

If we want apply the Phong or Lambertian light model, we have to transform whatever vectors (e.g. light direction vector, eye vector, etc.) from world space to tangent space. In order to do this, first note that the tangent world is defined by the ordered basis formed by the tangent vector, the bitangent vector and the normal vector. These vectors are pairwise orthogonal and thus they form an orthonormal basis $\{T, B, N\}$ for the tangent space.

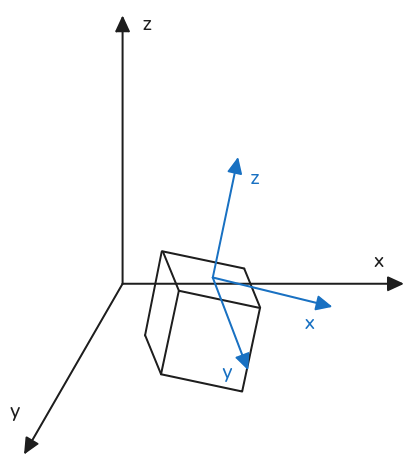

Transforming a Vector from World Space to Tangent Space

A vector $V_w$ in world space is defined as

where $i, j, k$ are the world-space basis vectors. To express $V_w$ in tangent space we need to change the basis from the world basis $\{i, j, k\}$ to $\{T, B, N\}$. So, we want to express $V_w$ as:

That means we have to find the components $(x’, y’, z’)$. This can be re-written as

That is

Where $V_t$ is the vector in tangent space. Thus, if we solve for $V_t$

Since $TBN$ is an orthonormal matrix, its inverse is just its transpose:

Normal Mapping on our Shaders

So how do we translate these operations to our shaders. First of all we have to define the normals and the tangents for the geometry (i.e. the triangle) as attributes to our vertex shader (here we denote them as aNormal and aTangent). Also note we transform this vectors using the uNormalMatrix to apply the local transformations over the model.

Next we use these two vectors to obtain the bitangent by computing their cross product, the result is stored on bitangent. With these three vectors we can now define our transformation matrix tbnMatrix.

...

uniform mat4 uModelViewMatrix;
uniform mat4 uNormalMatrix;
uniform mat4 uProjectionMatrix;

in vec3 aNormal;
in vec3 aTangent;

...

void main(void) {

    ...

    vec3 transformedNormal = vec3(uNormalMatrix * vec4(aNormal, 1.0));
    vec3 tansformedTangent = vec3(uNormalMatrix * vec4(aTangent, 1.0));
    vec3 bitangent = cross(transformedNormal, tansformedTangent);
    mat3 tbnMatrix = mat3(
      tansformedTangent.x, bitangent.x, transformedNormal.x,
      tansformedTangent.y, bitangent.y, transformedNormal.y,
      tansformedTangent.z, bitangent.z, transformedNormal.z
    );

    ...
}

From here on we can use the tbnMatrix to transform the light direction vector (denoted lightRay) and the eye direction vector (denote eyeRay). As you can see we store the resulting values as varyings so they can be interpolated and used on the fragment shader, as we’ll see later.

...

uniform mat4 uModelViewMatrix;
uniform mat4 uNormalMatrix;
uniform mat4 uProjectionMatrix;

uniform vec3 uLightPosition;

in vec3 aPosition;

...

void main(void) {
    vec4 vertex = uModelViewMatrix * vec4(aPosition, 1.0);

    ...

    vec3 lightRay = vertex.xyz - uLightPosition;
    vec3 eyeRay = -vertex.xyz;

    vTangentLightRay = lightRay * tbnMatrix;
    vTangentEyeRay = eyeRay * tbnMatrix;

    ...
}

The last things needed are the usual, we compute the vertex position by multipliying by the projection matrix and we also store the texture coordinates as a varying:

...

in vec2 aTextureCoords;

...

void main(void) {

    ...

    vTextureCoords = aTextureCoords;

    gl_Position = uProjectionMatrix * vertex;

    ....
}

On our fragment shader we use the transformed ligth ray as well as the transformed eye ray to apply both the Phong and the Lambertian light model.

#version 300 es

precision mediump float;

const float SHININESS = 8.0;

uniform sampler2D uSampler;
uniform sampler2D uNormalSampler;

uniform vec4 uLightDiffuse;
uniform vec4 uLightAmbient;
uniform vec4 uMaterialAmbient;

in vec2 vTextureCoords;
in vec3 vTangentLightRay;
in vec3 vTangentEyeRay;

out vec4 fragColor;

// Transforms the normal stored inside the texture from a range of [0, 1] to a range of [-1, 1]
vec3 transformNormal() {
  return 2.0 * (texture(uNormalSampler, vTextureCoords).rgb - 0.5);
}

void main(void) {

  // Ambient color
  vec4 Ia = uLightAmbient * uMaterialAmbient;

  // Diffuse color
  vec4 textureColor = texture(uSampler, vTextureCoords);
  vec3 N = normalize(transformNormal());
  vec3 L = normalize(vTangentLightRay);
  float lambertTerm = dot(N, -L);
  vec4 Id = textureColor * uLightDiffuse * lambertTerm;

  // Specular color
  vec3 R = reflect(L, N);
  float Is = pow(clamp(dot(R, vTangentEyeRay), 0.0, 1.0), SHININESS);

  fragColor = Ia + Id + Is;
}

Compute Tangents

As we have said, our tangent space is defined by three vectors: the normal vector, the bitangent vector and the tangent vector. The normal vector is defined by the vertices, the bitangent vector is defined as the cross product of the normal vector and the tangent vector. But where does the tangent vector come from?

First of all, for every 3D vertex there is infinite tangent and bitangent vectors, as the following image shows there exists in fact a tangent plane.

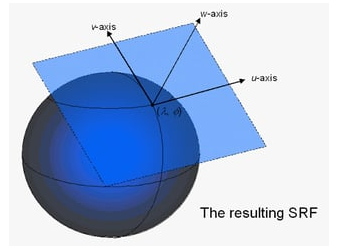

So in order to properly calculate the most useful tangent space, we want our tangent space to be aligned such that the $x$ axis (the tangent) corresponds to the $u$ direction in the normal map and the $y$ axis (bitangent) corresponds to the $v$ direction in the normal map. See the following image

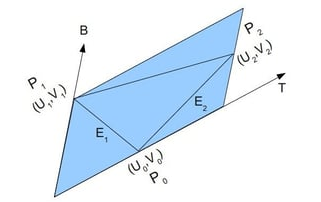

We will assume $T$ is the tangent and $B$ is the bitangent, and $P_0$ is our target vertex, that is part of the triangle ($P_0$,$P_1$,$P_2$). We want to calculate the tangent and bitangent such that:

• $T$ is alidned with $u$ and $B$ is aligned with $v$
• $T$ and $B$ lay in the tangent plane.

The point is we already assumed that $T$ and $B$ lay in the same plane and corresponds to $U$ and $V$ now if we can know their values we can cross product and the third vector to construct a transformation matrix from world to tangent space.

Given that we know that any 2D vector can be written as a linear combination of two independent vectors and since we already have the triangle points (edges), shown in the above image. We can write:

The above equation can be written in a matrix form,

By solving the matrixs equation we can determine $T$ and $B$ values we can construct a transformation matrix.

Ray Tracing

Thus far, all of our rendering has been done with polygon rasterization, which is the technical term for the triangle-based rendering that WebGL incorporates. Ray tracing is an alternate rendering technique that traces the path of light through a scene as it interacts with mathematically defined geometry.

Ray tracing has several advantages, it creates more realistic scenes due to a more accurate lighting model. That said, ray tracing tends to be considerably slower than polygonal rendering.

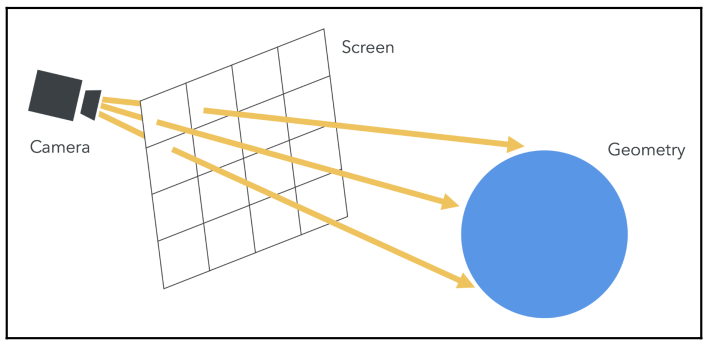

Ray tracing a scene is achieved by creating a series of rays that start at the camera’s location and pass through each pixel in the viewport. These rays are then tested against every object in the scene to determine whether there are any intersections. If an intersection occurs, the closest intersection to the ray origin is returned, determining the color of the rendered pixel:

Let’s showcase how to create “Ray Tracing Filter”, such that we create a filter, which allows us to paint over a texture which is simply the entire screen. Let us have a look at out simple vertex shader:

#version 300 es

precision mediump float;

// These positions define the corner vertices
in vec2 aPosition;
// This is can be thought of a blank page on where we are going
// to render using our fragment shader
in vec2 aTextureCoords;

out vec2 vTextureCoords;

void main(void) {
    vTextureCoords = aTextureCoords;
    gl_Position = vec4(aPosition, 0.0, 1.0);
}

As you can see we do mostly nothing other than passing values to the fragment shader, concretely the coordinates of the texture (think of this as the coordinates of a pixel on the screen). Now, where the magic happens, the fragment shader:

#version 300 es
precision mediump float;

uniform float uTime;
uniform vec2 uInverseTextureSize;

out vec4 fragColor;

float computeIntersectionDistance(vec3 rayOrigin, vec3 rayDirection, vec4 sphere) {
  // Center sphere at origin (0, 0), this makes the equation for the sphere simpler
  vec3 objectRayOrigin = rayOrigin - sphere.xyz;

  // Note that the equation of a centered sphere x^2 + y^2 + z^2 = r^2
  // Note that any point on the direction the camera is looking at can be obtained as
  //    point = rayOrigin + distance * rayDirection
  // When we combine these equations, we get a quadratic equation
  //    a * distance^2 + b * distance + c = 0
  //  Where the coefficients are obtained as follows:

  float a = dot(rayDirection, rayDirection);
  float b = 2.0 * dot(objectRayOrigin, rayDirection);
  // w is the sphere radius
  float c = dot(objectRayOrigin, objectRayOrigin) - sphere.w * sphere.w;

  // Now we obtain the discriminant for the quadratic equation
  // - If d < 0 then there is not intersection (there is no real solution for sqrt(d))
  // - If d = 0 then there is a single solution (because sqrt(d) = 0), and therefore one intersection
  // - If d > 0 then there are two possible solutions, as the ray intersects
  //   the sphere twice (because +-sqrt(d))
  float d = b * b - 4.0 * a * c;

  // No intersection
  if (d < 0.0) return d;

  // We obtain the least possible distance (by not using the + value for the sqrt)
  return (-b - sqrt(d)) / 2.0;
}

vec3 computeSphereNormal(vec3 intersectionPoint, vec4 sphere) {
  // Returns a normalized vectors that goes from the center of the sphere to
  // the point of intersection on the sphere
  return (intersectionPoint - sphere.xyz) / sphere.w;
}

vec3 lightDirection = normalize(vec3(0.5));
vec3 eyePos = vec3(0.0, 1.0, 4.0);
vec3 backgroundColor = vec3(0.2);
vec3 ambient = vec3(0.05, 0.1, 0.1);

vec4 sphere = vec4(1.0);
vec3 sphereColor = vec3(0.9, 0.8, 0.6);
float maxDistance = 1024.0;

float checkIntersection(vec3 rayOrigin, vec3 rayDirection, out vec3 norm, out vec3 color) {
  float distance = maxDistance;

  // If we wanted multiple objects in the scene you would loop through them here
  // and return the normal and color with the closest intersection point (lowest distance).
  float intersectionDistance = computeIntersectionDistance(rayOrigin, rayDirection, sphere);

  // If there is indeed an intersection
  if (intersectionDistance > 0.0 && intersectionDistance < distance) {
    distance = intersectionDistance;
    // We compute the intersection point by traveling along the ray from
    // the camera position (rayOrigin) in the direction of rayDirection for
    // exactly 'distance' units
    vec3 intersectionPoint = rayOrigin + distance * rayDirection;
    // Get normal for that point
    norm = computeSphereNormal(intersectionPoint, sphere);
    // Get color for the sphere
    color = sphereColor;
  }

  return distance;
}


void main(void) {
  // Update sphere position
  sphere.x = 1.5 * sin(uTime);
  sphere.z = 0.5 * cos(uTime * 3.0);

  // Obtain pixel coordinates in normalized space ([0, 1] range)
  vec2 uv = gl_FragCoord.xy * uInverseTextureSize;
  float aspectRatio = uInverseTextureSize.y / uInverseTextureSize.x;

  // Cast a ray out from the eye position into the scene
  vec3 rayOrigin = eyePos;

  // The ray we cast is tilted slightly downward to give a better view of the scene
  vec3 rayDirection = normalize(
    vec3(
      // Maps uv coordinates to view frustrum (visible space not clipped from the camera)
      // and centers then by offsetting by -0.5
      -0.5 + uv * vec2(aspectRatio, 1.0),
      // Tilts the view
      -1.0
    )
  );

  // Default color if we don't intersect with anything
  vec3 rayColor = backgroundColor;

  // See if the ray intersects with any objects.
  // Provides the normal of the nearest intersection point and color
  vec3 objectNormal, objectColor;
  float t = checkIntersection(rayOrigin, rayDirection, objectNormal, objectColor);

  // If there is an intersection change the color of the pixel
  // such that is different from the background
  if (t < maxDistance) {
    // Use dot product, which for normalized vectors equals the cosine between the
    // vectors, the cosines values is biggest when two vectors point on the same direction,
    // and therefore the diffuse value should be maximized as that means the light is
    // pointing straigth at the normal of the surface
    float diffuse = clamp(dot(objectNormal, lightDirection), 0.0, 1.0);
    rayColor = objectColor * diffuse + ambient;
  }

  fragColor = vec4(rayColor, 1.0);
}

Testing WebGL Applications

Image comparisons of various application states throughout the development cycle is a common approach for testing WebGL applications. This technique, often referred to as visual regression testing, performs front-end or user-interface regression testing by capturing the screenshots of web pages/UI and comparing them with the original images.

In the previous screenshot, you can see how the Baseline and Change are different via the final Diff output. This technique can be an effective approach for ensuring that your WebGL application continues to behave as expected.
